Is PEEK as Strong as Steel? Strength Properties and When to Use It

Introduction

"Is PEEK as strong as steel?" ranks among the most common material substitution questions in engineering—yet it's also one of the most misleading. Strength isn't a single number, and the comparison depends entirely on which strength property you're measuring, which PEEK grade you're specifying, and which steel you're comparing against.

Many engineers struggle with this decision because datasheet tensile values tell only part of the story. A carbon-fiber-reinforced PEEK component might show 250 MPa tensile strength versus mild steel's 400 MPa, but accounting for PEEK's density of 1.3 g/cm³ versus steel's 7.8 g/cm³ shifts the strength-to-weight ratio dramatically in PEEK's favor.

Add corrosion resistance, electrical insulation, or MRI compatibility to the requirements, and the comparison becomes even less straightforward.

PEEK's strength profile makes it a viable steel replacement in specific, well-defined conditions. This article breaks down the key strength properties, grade-by-grade comparisons, and the conditions where PEEK holds up—and where it doesn't.

TL;DR

• PEEK's tensile strength (90–250 MPa depending on grade) is lower than structural steels (400–2,000 MPa), but its strength-to-weight ratio is highly competitive
• Reinforced PEEK outperforms steel on a per-kilogram basis: 30% carbon-fiber PEEK reaches 189.3 MPa·cm³/g versus 51–70 MPa·cm³/g for A36 steel
• Temperature, fiber orientation, and injection molding parameters significantly affect realized strength in finished components
• PEEK replaces steel where multiple requirements overlap: weight reduction, corrosion resistance, high temperature, electrical insulation, or imaging compatibility

What "Strength" Really Means for PEEK: A Multi-Property View

Quoting a single tensile value to characterize PEEK's strength leads to incorrect material comparisons and under-specified designs. "Strength" in engineering covers at least five distinct properties: tensile, compressive, flexural, fatigue, and impact. Each behaves differently under specific loading conditions.

Tensile Strength

Tensile strength measures the force per unit area at failure under axial pull. This is the property most commonly cited in PEEK-versus-steel comparisons, making it the starting reference point for most engineers.

Standard values at 23°C:

• Unfilled PEEK: 96–100 MPa
• 30% glass-fibre PEEK: 170–179 MPa
• 30% carbon-fibre PEEK: 236–265 MPa

Tensile strength is a useful baseline, but it says nothing about behavior under bending, compression, or cyclic loads — all common conditions in real components.

Flexural and Compressive Strength

Flexural strength measures resistance to bending loads, while compressive strength measures resistance to crushing forces. PEEK performs well in both, with flexural strength values often exceeding tensile values.

Typical values:

• Unfilled PEEK flexural: 125–146 MPa
• Unfilled PEEK compressive: 118–125 MPa
• 30% GF PEEK flexural: 271 MPa (at 23°C)

This makes PEEK particularly suitable for applications involving bending moments or compressive loads, such as structural brackets, bearing housings, and pump components.

Fatigue and Impact Resistance

Fatigue resistance—performance under repeated cyclic loading—is especially critical for moving components like gears, bearings, and pump impellers. PEEK's semi-crystalline structure contributes to superior fatigue and creep resistance compared to amorphous engineering plastics.

Key fatigue characteristics:

• Apparent fatigue limit exceeds 75% of ultimate tensile strength
• 3D-printed PEEK shows fatigue strength of 65 MPa (approximately 75% of ultimate tensile strength)
• Significantly outperforms metals at equivalent weight in cyclic applications

Impact resistance is comparatively lower and must be considered in shock-load applications. Notched Izod impact values range from 6.0–9.2 kJ/m² for unfilled PEEK, making it less suitable for high-impact environments without reinforcement.

No single property tells the full story. Selecting PEEK for a structural application means evaluating which of these properties governs the design — and matching the right grade to that requirement.

PEEK vs. Steel: How the Numbers Compare Across Grades

The PEEK you test in a lab and the PEEK you mould into a part can have meaningfully different strength properties depending on grade, filler content, and processing. This section provides a direct, grade-by-grade comparison.

Unfilled PEEK vs. Structural Steel

Unfilled PEEK does not match steel in absolute tensile strength, but its specific strength (strength ÷ density) is far more competitive.

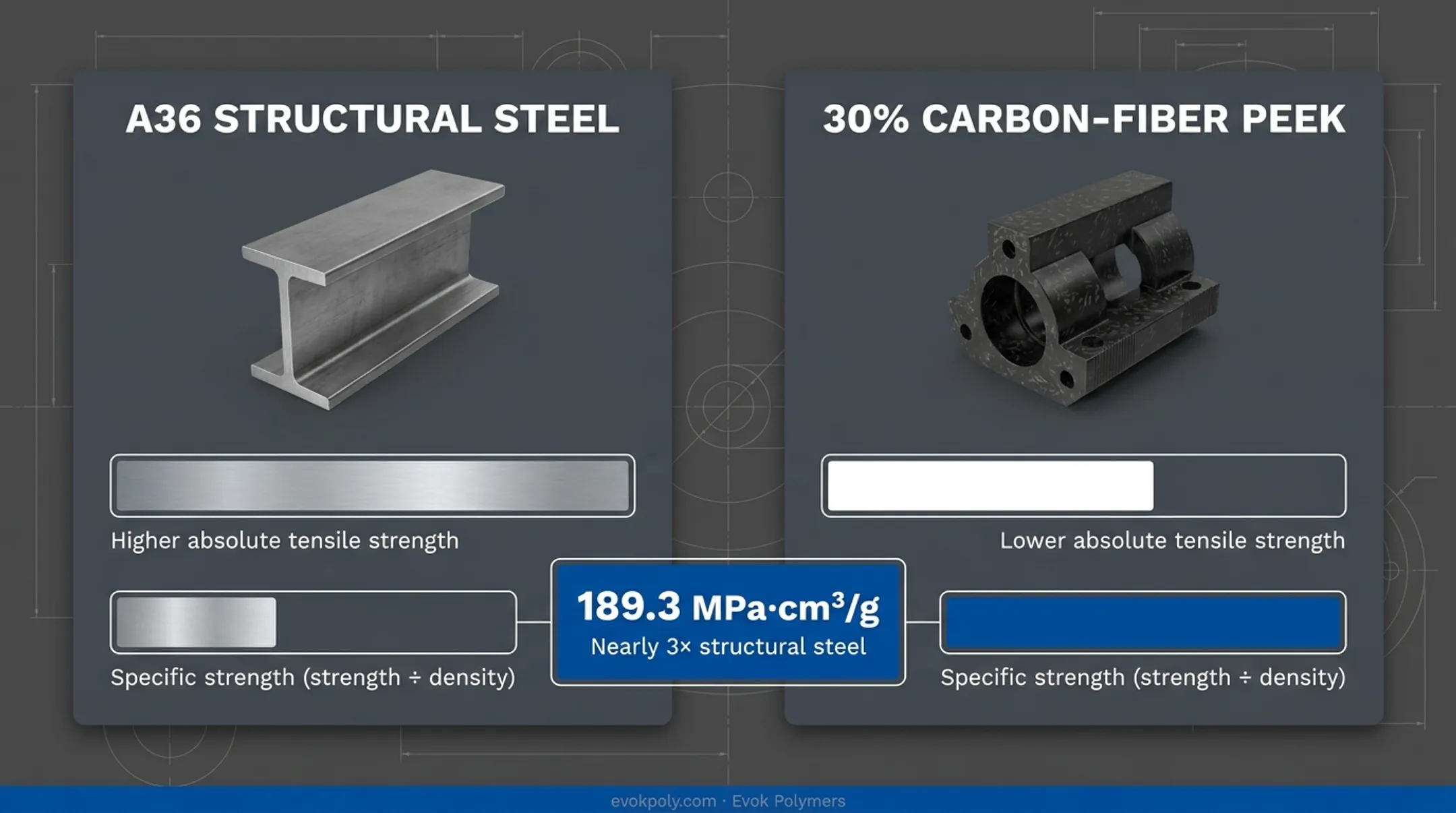

A36 steel delivers higher absolute tensile strength, but 30% carbon-fiber PEEK achieves a specific strength of 189.3 MPa·cm³/g—nearly three times that of structural steel.

Glass-Fiber and Carbon-Fiber Reinforced PEEK

Reinforcing PEEK with 30% glass fiber or 30% carbon fiber changes its mechanical profile significantly:

Glass-fiber-filled PEEK:

• Improves stiffness and dimensional stability
• Tensile strength: 150–179 MPa
• Best for applications requiring rigidity with moderate strength

Carbon-fiber-filled PEEK:

• Delivers highest tensile strength: 200–265 MPa
• Best specific strength among PEEK grades
• Approaches low-to-mid-strength aluminum alloys (7075-T6 aluminum: 204 MPa·cm³/g)

Carbon-fiber-filled PEEK can replace certain steel components in aerospace and semiconductor applications where the combined requirements of strength, weight, and chemical resistance cannot be met by steel alone.

Where the Comparison Tilts in PEEK's Favour

PEEK is approximately six times lighter than steel. On a per-kilogram basis, reinforced PEEK's load-bearing capacity relative to its mass makes it directly competitive in non-maximum-load structural roles.

Weight advantage is only part of the story. In aggressive chemical, marine, or high-humidity environments, PEEK's corrosion resistance prevents the long-term strength degradation that coated and uncoated steel cannot avoid. A steel component rated at 400 MPa may drop to 300 MPa or less after years of corrosion exposure, while PEEK holds its rated properties in the same conditions.

What Affects PEEK's Strength in Real-World Applications

The gap between a PEEK datasheet value and the strength of a finished molded or machined component is real and non-trivial. Understanding the variables that drive that gap is essential for reliable part specification.

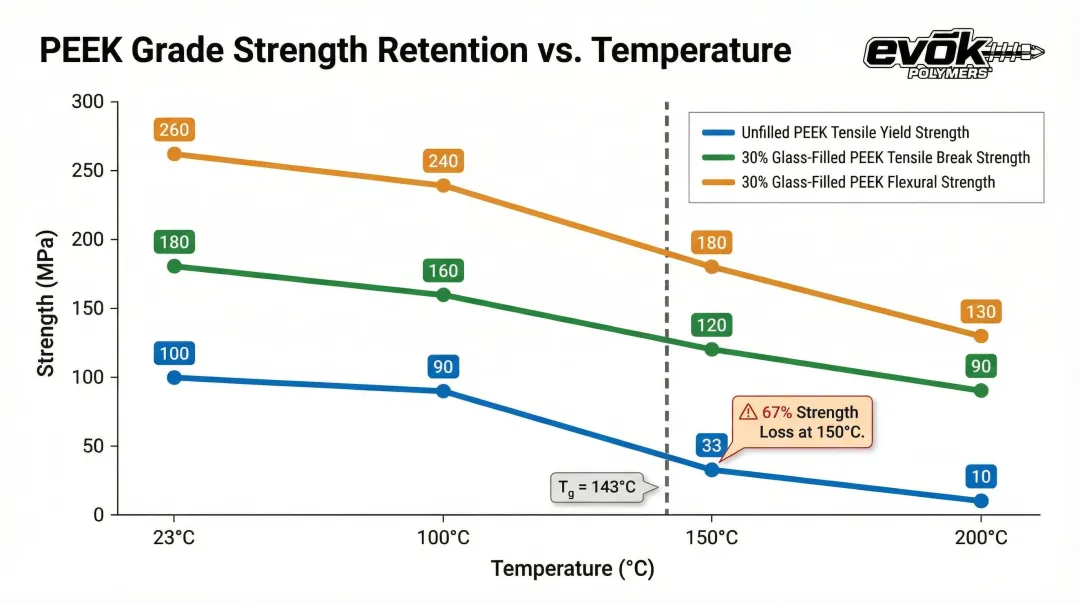

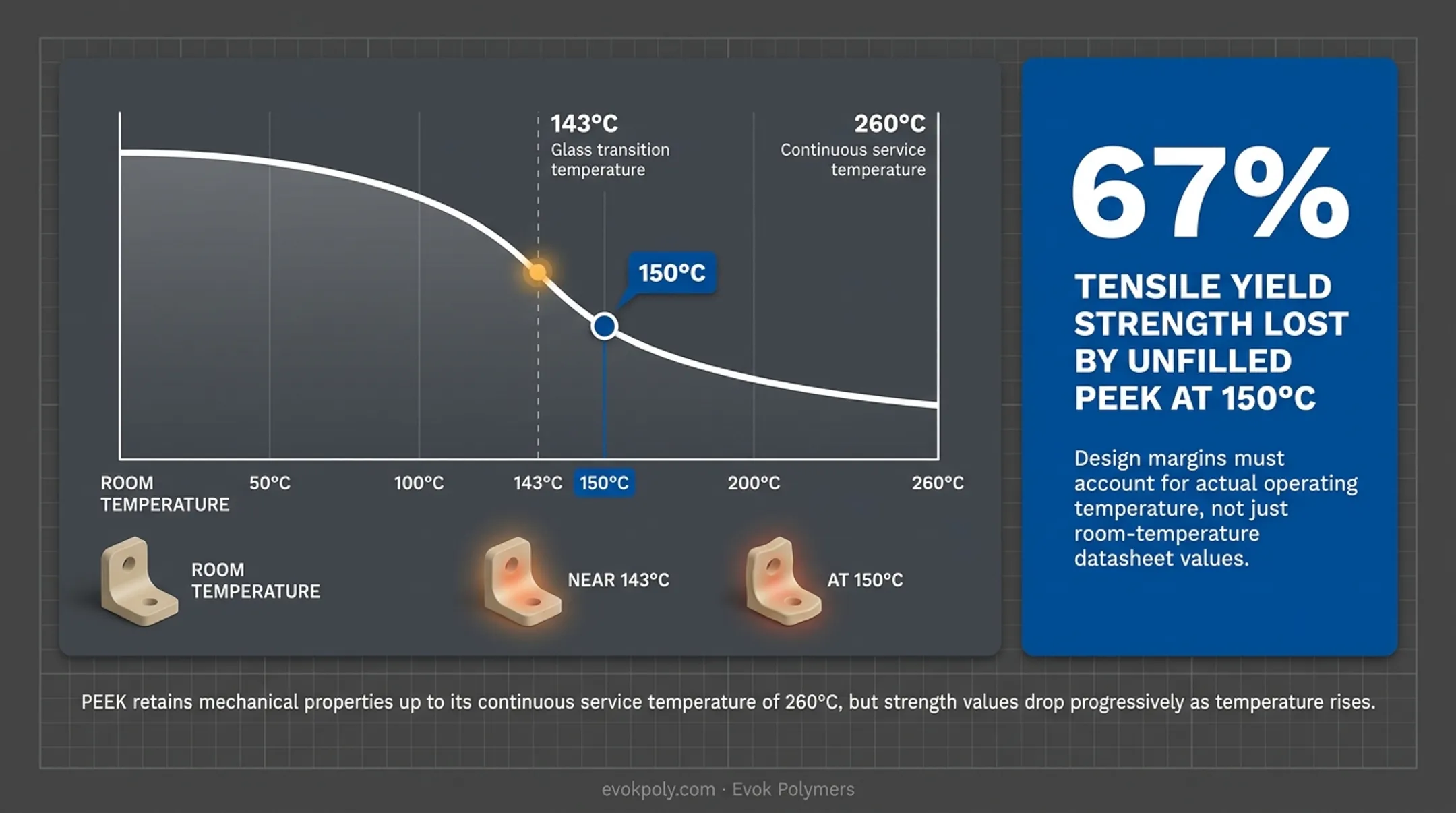

Temperature Effects on Mechanical Strength

PEEK retains mechanical properties up to its continuous service temperature of 260°C, but strength values drop progressively as temperature rises.

Strength retention at elevated temperatures:

Unfilled PEEK loses approximately 67% of its tensile yield strength at 150°C as it crosses its glass transition temperature of 143°C. Design margins must account for actual operating temperature, not just room-temperature datasheet values.

Filler Type, Orientation, and Anisotropy

In fibre-reinforced PEEK, fibre orientation during processing creates anisotropic (directionally dependent) strength — the part may be significantly stronger in the flow direction than transverse to it.

Critical weld-line vulnerability:While unfilled PEEK retains 99% of its tensile strength at injection-molded weld lines, 30% CF PEEK loses over 50% of its strength (dropping from 236 MPa to 111 MPa) because reinforcing fibres cannot cross the melt front.

Directional shrinkage:For 30% CF PEEK, mold shrinkage in the flow direction is 0.0–0.2%, while transverse shrinkage is 1.5–1.7%. This directional dependency affects coefficient of linear thermal expansion (CLTE) and stiffness.

Injection Molding Parameters and Part Design

Weld lines (where two flow fronts meet), wall thickness variations, and gate location can significantly reduce the realised tensile strength of a molded PEEK component compared to a machined test specimen.

Critical processing parameters for unfilled PEEK:

• Melt temperature: 375°C
• Mold temperature: 170–200°C
• Proper crystallinity development required

Proper mold design, including gate positioning, runner balance, and controlled cooling, is critical to achieving the material's rated strength in a finished part. These decisions are made before the first shot is pulled — which is why mold development expertise matters as much as material selection when specifying PEEK for high-performance applications.

Chemical Exposure and Degradation

While PEEK is broadly chemically resistant, certain aggressive solvents can degrade surface integrity and reduce effective strength over time.

Known chemical vulnerabilities:

• Concentrated sulfuric acid (>40%): Severe interaction
• Methylene chloride (DCM): Absorbs up to 23 wt%, plasticises resin, accelerates fatigue crack growth by two orders of magnitude

These conditions must be verified against published chemical resistance data before specifying PEEK in place of steel in chemical processing environments.

When to Use PEEK Instead of Steel

PEEK becomes the preferred choice when two or more of the following requirements coincide. When only one condition exists, steel may still be preferable on cost grounds; when multiple overlap, PEEK's total cost of ownership often wins.

Decision Criteria: The Multi-Requirement Overlap

Choose PEEK when these conditions combine:

• Weight reduction is critical (aerospace, robotics, portable equipment)
• Environment is corrosive or chemically aggressive
• Operating temperature exceeds what aluminum can handle (>150°C)
• Electrical insulation is required
• Component must be MRI/X-ray compatible
• Outgassing must meet ASTM E595 limits (vacuum/semiconductor environments)

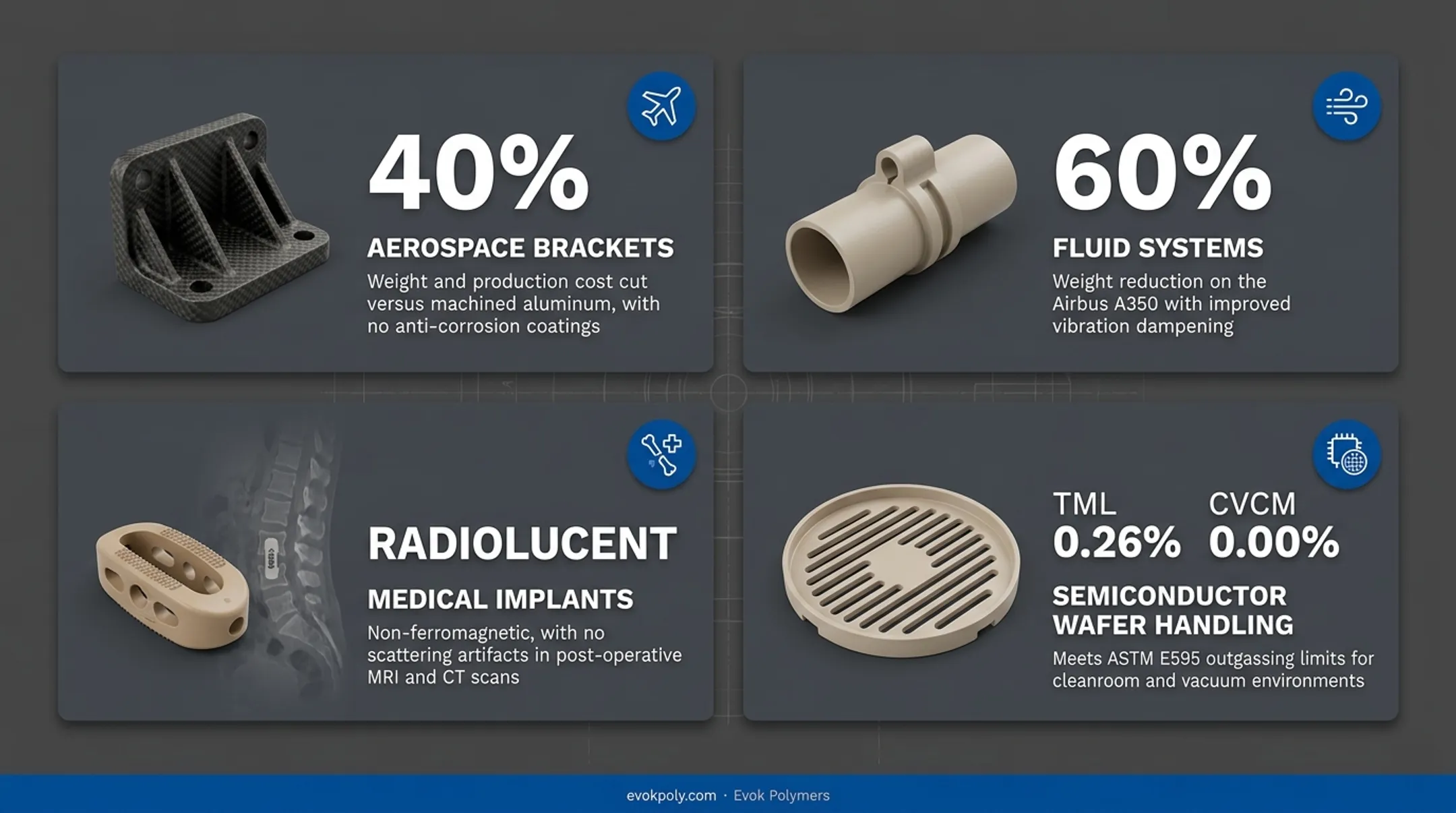

Industry-Specific Application Examples

Real-world substitutions show where PEEK delivers measurable gains over metal:

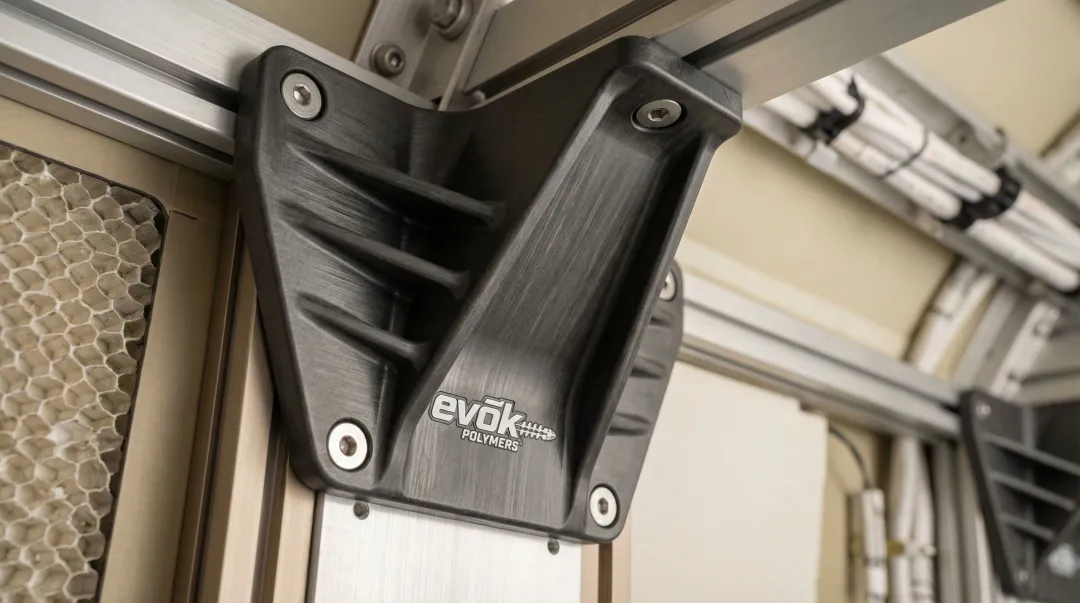

• Aerospace brackets: Airbus Helicopters replaced machined aluminum brackets with injection-molded carbon-fiber PEEK, cutting both weight and production costs by 40% while eliminating anti-corrosion coatings.
• Fluid systems: PFW Aerospace switched to thin-wall PEEK pipes on the Airbus A350, achieving up to 60% weight reduction with improved vibration dampening.
• Medical implants: PEEK is completely radiolucent and non-ferromagnetic, eliminating the scattering artifacts in post-operative MRI and CT scans that titanium and stainless steel produce.
• Semiconductor wafer handling: Injection-molded PEEK meets ASTM E595 outgassing limits with TML of 0.26% and CVCM of 0.00% — critical thresholds for cleanroom and vacuum environments.

Evok Polymers has supported OEM programs in several of these sectors—including semiconductor and medical device applications—where injection-molded PEEK components replaced metal assemblies with measurable weight and lifecycle cost improvements.

When Steel Should Still Be Specified

Steel remains the right call when:

• Absolute tensile strength is the governing design criterion
• Component serves as primary load-bearing structural member
• Cost is paramount and no corrosion/weight/temperature penalties exist
• Impact resistance is critical (PEEK's notched impact is lower)

If the design has only one demanding requirement—and cost is a factor—run the numbers on steel first. PEEK earns its place when multiple constraints converge and lifecycle costs matter more than unit price.

Common Misinterpretations When Comparing PEEK and Steel Strength

Material substitution decisions are frequently driven by single-number comparisons pulled from datasheets. This is where PEEK-for-steel swaps most commonly go wrong.

Treating Tensile Strength as the Only Metric

Using tensile strength alone to judge PEEK against steel ignores flexural, compressive, fatigue, and creep behaviour. In many applications, PEEK's fatigue endurance and creep resistance under sustained load are more relevant design criteria than peak tensile strength.

Why this matters:

• Gears and bearings: Fatigue strength (75% of ultimate tensile) is the governing criterion
• Structural brackets: Flexural strength (125–271 MPa depending on grade) determines performance
• Pump housings: Compressive strength (118–125 MPa) and creep resistance matter most

The fatigue comparison favors PEEK more than the tensile comparison does.

Applying Unfilled PEEK Data to Reinforced-Grade Applications (and Vice Versa)

Using unfilled PEEK strength data (~90 MPa) to specify a part that could use 30% CF PEEK (~250 MPa) results in over-engineering and cost penalty. Conversely, assuming reinforced-grade properties in a part produced from unfilled PEEK creates an understrength component.

Grade selection must match:

• Mechanical requirements (load type, magnitude, and cycle frequency)
• Processing method (injection molding vs. machining)
• Cost constraints
• Environmental conditions

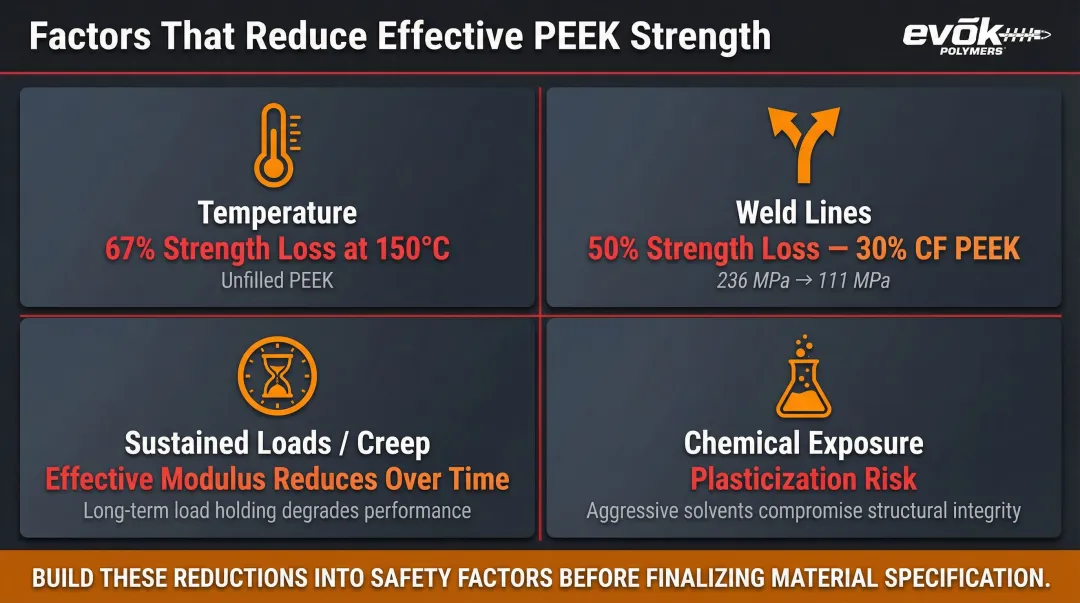

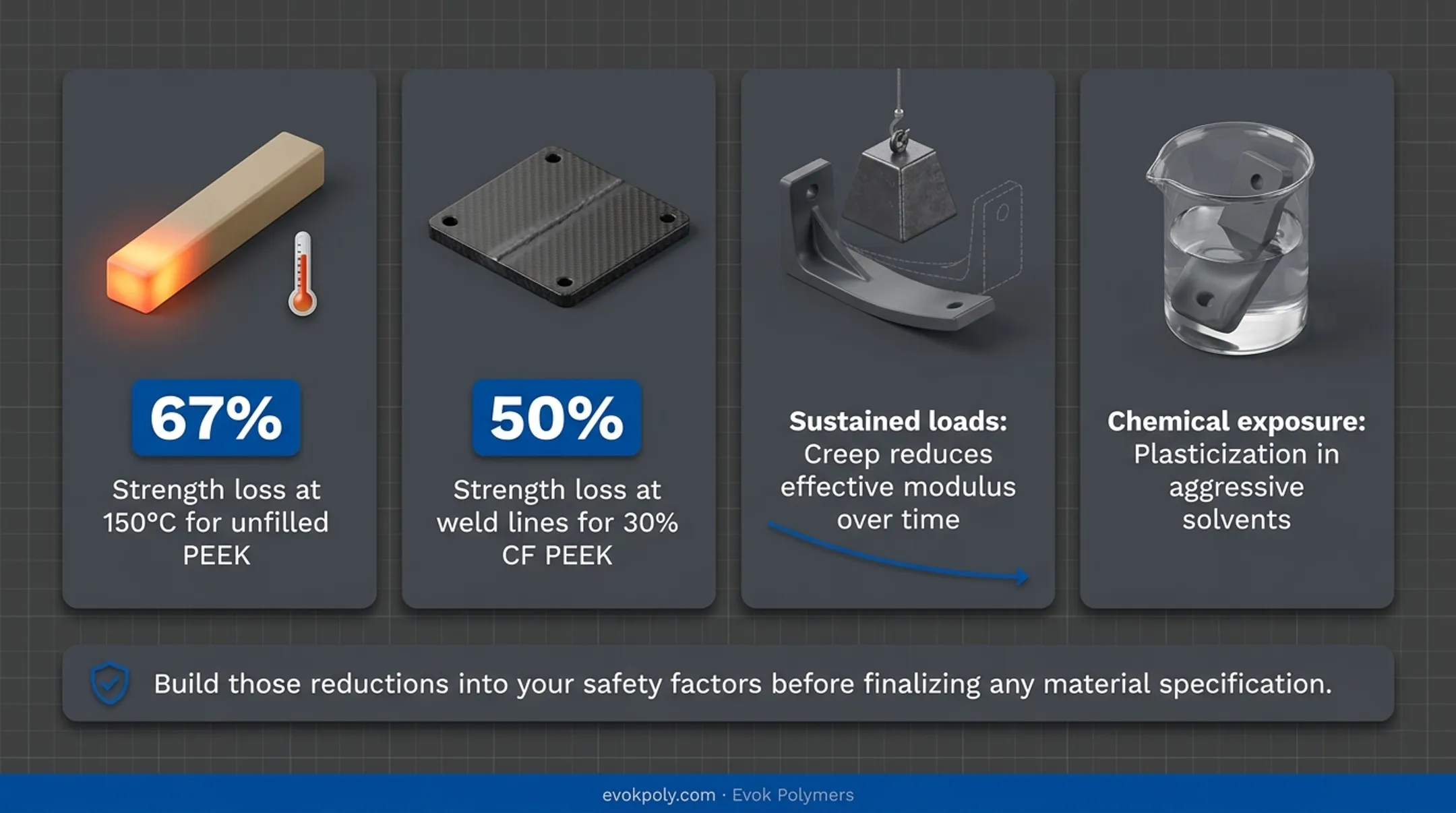

Ignoring the Effect of Service Conditions on Effective Strength

Datasheets publish room-temperature, ideal-specimen values. Real parts operate differently: elevated temperatures, sustained loads that cause creep, and geometric features like holes, thin walls, and weld lines all introduce stress concentrations that datasheets don't capture.

Each of these reduces effective strength:

• Temperature: 67% strength loss at 150°C for unfilled PEEK
• Weld lines: 50% strength loss for 30% CF PEEK
• Sustained loads: Creep reduces effective modulus over time
• Chemical exposure: Plasticization in aggressive solvents

Build those reductions into your safety factors before finalizing any material specification.

Frequently Asked Questions

How strong is PEEK compared to steel?

PEEK's tensile strength (90–250 MPa) is lower than most structural steels (400–2,000 MPa), but its density of 1.3 g/cm³ versus steel's 7.8 g/cm³ gives it a highly competitive strength-to-weight ratio. That trade-off makes it a practical replacement where weight reduction, corrosion resistance, or electrical insulation matter alongside moderate structural loads.

What is the tensile strength of PEEK?

Unfilled PEEK typically reaches 96–100 MPa, glass-fiber-reinforced PEEK reaches 170–179 MPa, and carbon-fiber-reinforced PEEK achieves 236–265 MPa. The exact value depends on grade, processing method, and testing conditions.

Does PEEK lose strength at high temperatures?

Yes — PEEK retains useful mechanical properties up to 260°C, but strength drops progressively as temperature rises. Unfilled PEEK loses roughly 67% of its tensile yield strength at 150°C, so design margins must reflect actual operating temperature, not just room-temperature datasheet values.

Can PEEK replace steel in structural applications?

PEEK can replace steel in specific structural roles—particularly where weight reduction, corrosion resistance, or electrical insulation are required alongside moderate structural loads. However, it is not a direct substitute for primary load-bearing structural members where maximum tensile strength is the governing design criterion.

What PEEK grade has the highest strength?

Carbon-fiber-reinforced PEEK (typically 30% CF content) achieves the highest tensile and flexural strength among standard grades, with tensile values of 236–265 MPa and a specific strength of 189.3 MPa·cm³/g.
